Single Door Controller Mullion

Entría Single Door Controller Mullion

Single entry point access control featuring Bluetooth 5.0, a QR Code camera and DESFire® or HID credential technology.

The Entría E1DC MU is an ideal solution for small-to-medium sized businesses and multi-family properties where a single door or gate needs wired access control.  It is controlled via TrueCloud Connect and the CellGate app and is available via a one-step connect VPN, hard-wired ethernet connection.

Contact Us»     E1DC MU Brochure »     Technical Specs

Key Features

Access Control for a Single Door or Gate

Advanced access control functionality with one Wiegand input and one relay output

Virtual Keys

Includes a QR Code Reader and backlit keypad for issuance of visitor Virtual Keys

DESFire® EV3 or HID Credentials

Supports high-security RFID credentials with encryption (DESFire EV3) & broad industry compatibility (HID)

Smart Credential Control

Credential restrictions available per entry point – and are stored locally to ensure secure, reliable access without cloud dependency

Bluetooth 5.0

Provides touchless access for residents or employees

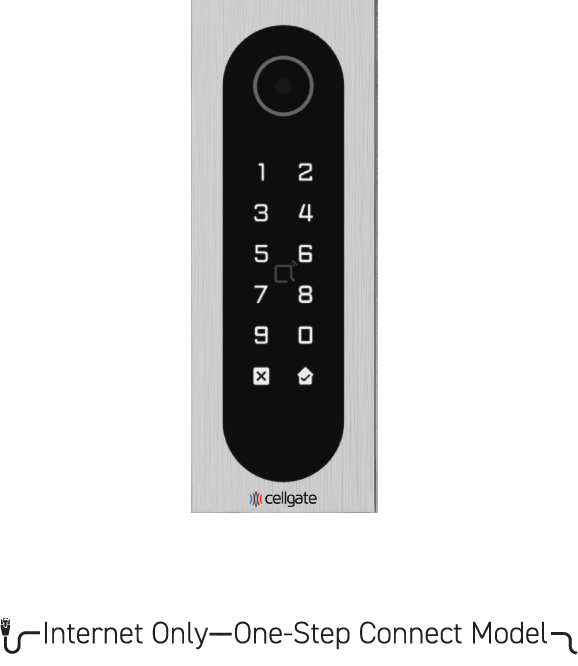

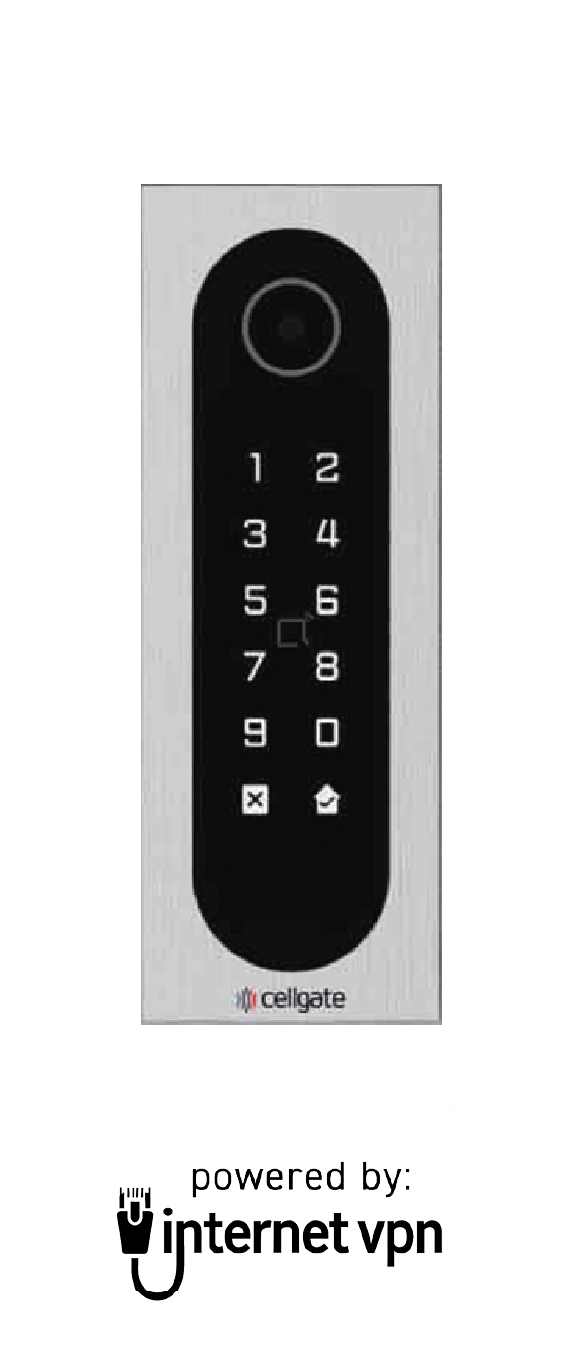

Simple VPN Setup

Provides easy one-step internet connectivity

Product Features & Benefits

Entría Single Door Controller Mullion

Hardware Features

Solid aluminum frame with backlit numeric keypad and a toughened glass front, IP-65 rated.

Makes access easy day or night, while providing sleek durability that stands up to wear and weather.

Includes one Wiegand 26-bit input.

With just one Wiegand input and a single relay, installation is quick and straightforward.

Includes 1 digital input and 1 REX (Request to Exit) input.

Users can monitor entry point status, and be alerted to forced entry or tamper events. The dedicated REX input also provides seamless integration of an exit button or motion sensor. Together, they give full visibility and control over the entry point.

12v DC Power Supply

Supporting both PoE and 12V DC, this device adapts to your infrastructure — whether you’re wiring over Ethernet or using a traditional power supply.  PoE streamlines installation with power and data over a single cable, reducing cost and clutter, while 12V DC offers compatibility with existing systems. It provides plug-and-play flexibility for faster installs and smarter deployments.

Entría Access Control Features

Supports DESFire® EV3 or HID Credentials.

Supports high-security RFID credentials with encryption (DESFire EV3) and broad industry compatibility (HID). This ensures seamless integration with existing access systems, while enhancing protection against cloning and credential theft. Credential types include cards, fobs or remotes.

Bluetooth 5.0, Hands Free Entry.

Lets users unlock doors or gates hands free, with their smartphone — no contact needed.  Perfect for modern, mobile-first access experiences, and great for residents or employees who prefer digital credentials.

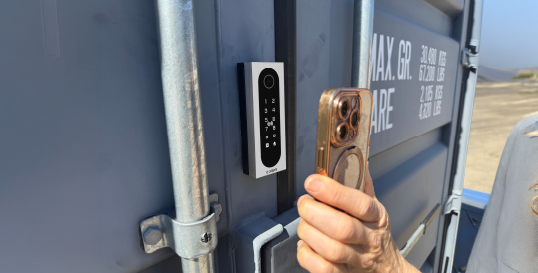

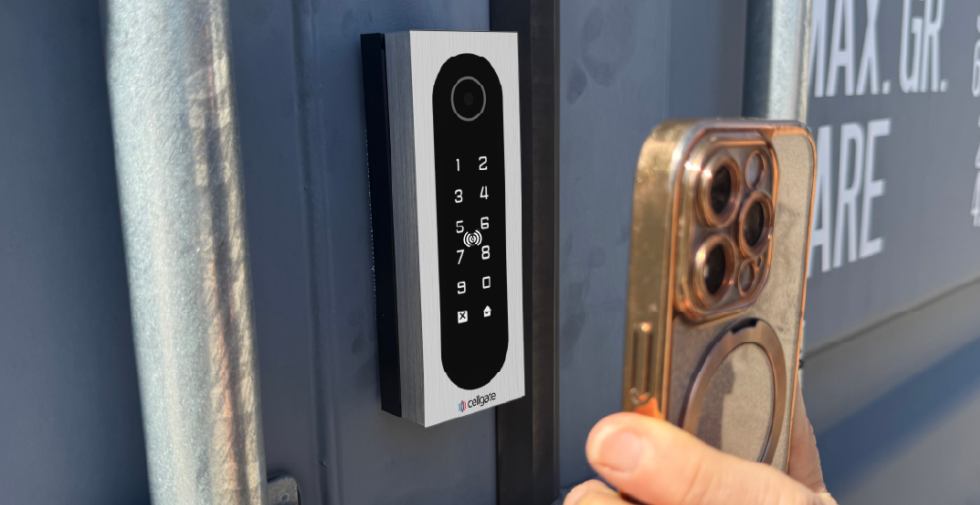

QR Code Access.

Easily generate and share time-limited access for visitors, deliveries, or one-time entries — all without handing out physical keys or cards. Adds convenience and control for property managers and business owners.

PIN Code Access.

Enables quick, keypad-based access without needing physical credentials. Ideal for guests, temporary users, or backup access when a card or phone is not available.



CellGate App

Open/close a gate or door remotely or set up a hold open period—all from the CellGate app.

Better security, ultimate convenience. The system can be controlled from anywhere.

Prop open notifications are sent if a gate or door has been left open longer than 3 minutes.

Better security, gates/doors cannot be left open inadvertently.

CellGate app works on both iOS and Android smart phones.

Works with majority of smart phones.

Push notifications can be sent to designated users on all access attempts (if desired).

Better security, know instantly who came/went on the property, and when.

TrueCloud Connect Administration

Entire system can be managed through TrueCloud Connect™, hosted by Microsoft Azure.

Simple, robust administration.  New users, access codes, restrictions, scheduled openings/closures, photos, and access attempt time & date details can all be set up and reviewed via TrueCloud Connect™.

Event logs of all transactions are recorded and stored in TrueCloud Connect.

Allows for review of who came and went, and when.

Multiple locations can be managed via a single login.

Simple administration of multiple properties.

Networks

Internet hardwired option only.

Utilize existing internet infrastructure, minimizing recurring costs. One-step internet VPN connectivity on setup.

Monthly recurring service charge.

Is for ongoing utilization of the app, TrueCloud Connect™, storage of all access transactions and access control data transmissions via internet.

Entría E1DC MU Downloads
