E4DC Four Door Controller

Entría

Wired & Wireless Access Control

Four Door Controller

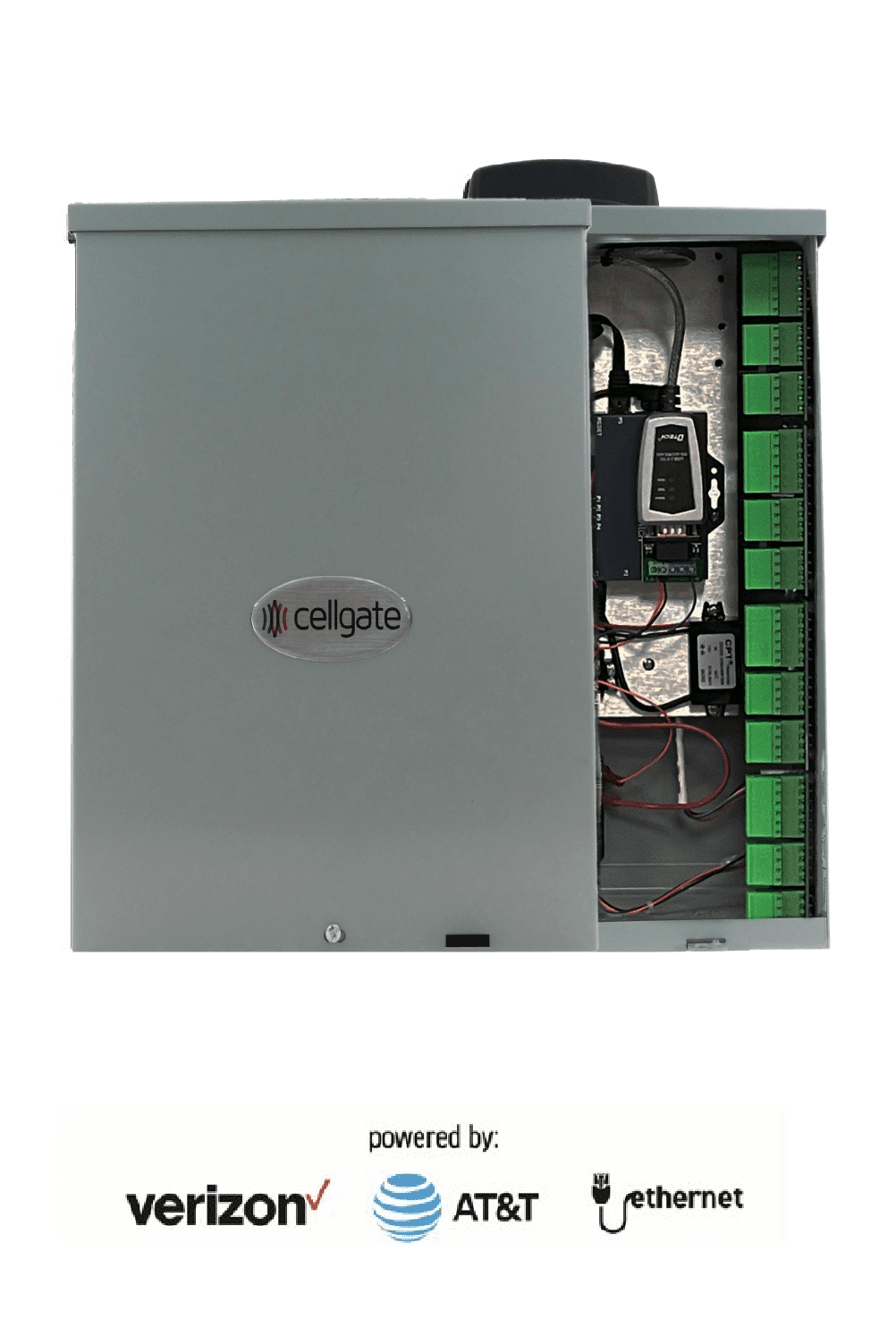

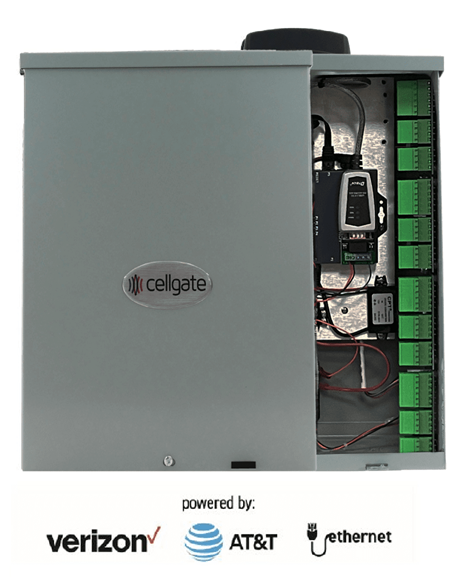

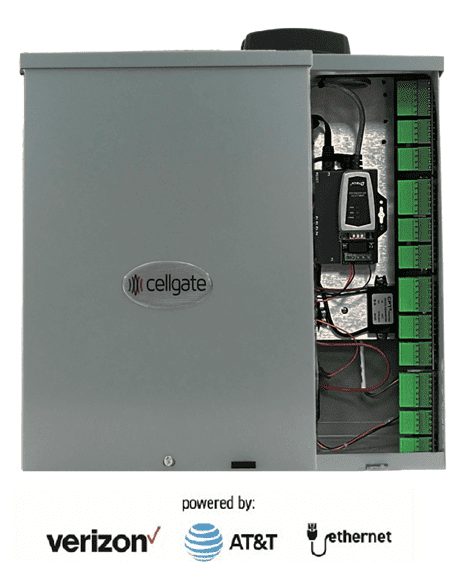

Entría Four Door Controller

The Entría E4DC is a powerful 4-door controller with cellular or ethernet connectivity & external camera integration capabilities. It supports Virtual Keys like QR codes, PIN codes and Bluetooth, along with DESFire® EV3 or HID credentials.

With local credential storage, entry point credential restrictions, and compatibility with CG Readers or any 26-bit Wiegand device, the Entría 4-door controller delivers smart, secure access control for any business or multi-family property.

Adminstration is managed from anywhere with cloud-based TrueCloud Connect.

Contact Us»     E4DC Brochure »     Technical Specs

Key Features

Multi-Door Management

Provides access control for up to four doors or gates

Integrated Cameras

Supports three (ethernet) or four (cellular) external cameras for increased visual verification at visitor access points

Scalable

With 4 Wiegand inputs and 8 relays per unit, systems scale easily by adding more devices to control additional entry points

Smart Credential Control

Credential restrictions available per entry point – and are stored locally to ensure secure, reliable access without cloud dependency

Virtual Keys & Bluetooth

Utilizing CG Readers with Entria allows for visitor Virtual Key & Bluetooth access at entry points

Connectivity Flexibility

Choose Verizon or AT&T cellular LTE for wireless access, or a wired ethernet option for seamless integration across diverse environments

Controller Compatibility

Integrates with all CellGate Readers

CellGate Readers

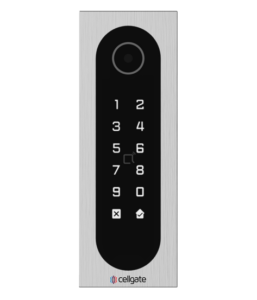

INFINITY

Infinity Reader

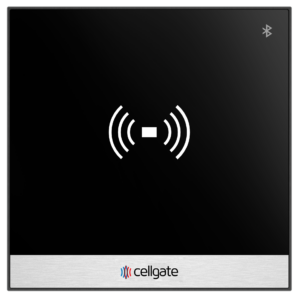

HALO

Halo Reader

DIGIT

Digit Keypad

Works with any 26-bit Wiegand product

Product Features & Benefits

Entría Four Door Controller

Hardware Features

The aluminum alloy frame provides a strong, lightweight housing that resists corrosion and physical impact, while the NEMA 3 rating ensures protection against dust, rain, sleet, and ice.

Ideal for both indoor and outdoor installs, it offers long-term durability in tough environments — reducing maintenance calls and ensuring reliable performance in the field.

Four Wiegand 26-bit inputs & 8 programmable relays per controller.

Enables precise management of up to four access points, while supporting auxiliary outputs for door locks, gate triggers, alarms, or status indicators — all from a centralized hardware platform.

Includes 4 digital inputs and 4 REX (Request to Exit) inputs

Users can monitor door status, forced entry, or tamper events at each access point. The 4 dedicated REX inputs also provide seamless integration of exit buttons or motion sensors. Together, they give full visibility and control over every door.

Power Supply: 12v DC

Available Features with Addition of CG Readers (varied by model)

PIN Code Access.

Enables quick, keypad-based access without needing physical credentials. Ideal for guests, temporary users, or backup access when a card or phone is not available.

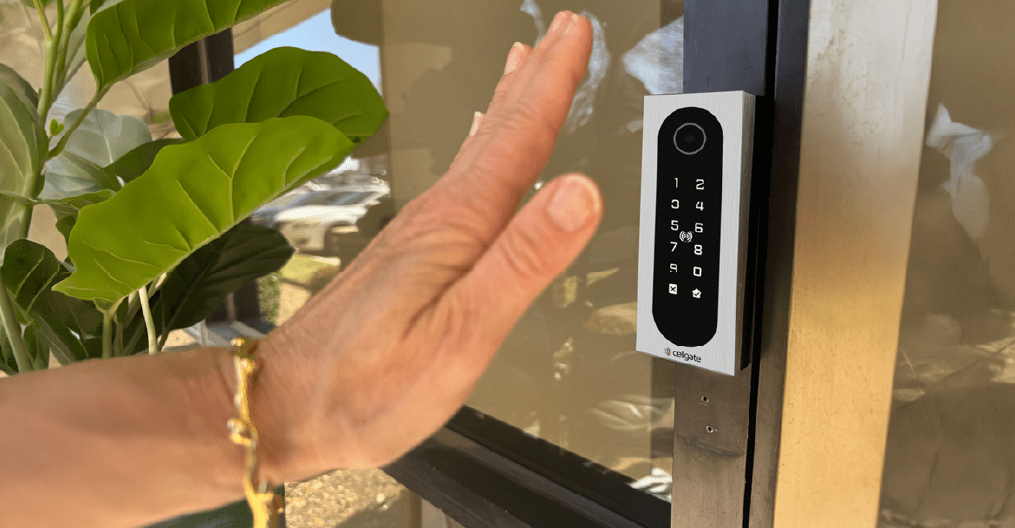

Bluetooth 5.0, Hands Free Entry.

Lets users unlock doors or gates hands free, with their smartphone — no contact needed.  Perfect for modern, mobile-first access experiences, and great for residents or staff who prefer digital credentials.

QR Code Access.

Easily generate and share time-limited access for visitors, deliveries, or one-time entries — all without handing out physical keys or cards. Adds convenience and control for property managers and business owners.

DESFire® EV3 or HID Credentials.

Supports high-security RFID credentials with encryption (DESFire® EV3) and broad industry compatibility (HID). This ensures seamless upgrades and integration with existing access systems, while enhancing protection against cloning and credential theft. Credentials available via key cards, fobs or remotes.





CellGate App

Open/close a gate or door remotely, set up a hold open period and take photos from external cameras on demand—all from the CellGate app.

Better security, ultimate convenience. The system can be controlled from anywhere.

Prop open notifications are sent if a gate or door has been left open longer than 3 minutes.

Better security, gates/doors cannot be left open inadvertently.

CellGate app works on both iOS and Android smart phones.

Works with majority of smart phones.

Push notifications can be sent to designated users on all access attempts (if desired).

Better security, know instantly who came/went on the property, and when.

TrueCloud Connect Administration

Entire system can be managed through TrueCloud Connect™, hosted by Microsoft Azure.

Simple, robust administration.  New users, access codes, restrictions, scheduled openings/closures, photos, and access attempt time & date details can all be set up and reviewed via TrueCloud Connect™.

Event logs of all transactions plus photos from integrated cameras are recorded and stored in TrueCloud Connect.

Allows for review of who came and went, and when, including stored photos taken by any integrated cameras.

Multiple locations can be managed via a single login.

Simple administration of multiple properties.

Networks

Works on Verizon and AT&T LTE cellular networks.

Cellgate is the ONLY cellular access company whose products can work on Verizon; AT&T and Verizon are the two largest cellular LTE networks in the U.S.

Ethernet hardwired option.

Utilizing existing internet infrastructure, this option minimizes recurring costs; one-step ethernet VPN connectivity on setup.

Monthly recurring service charge.

Products incur a monthly recurring service charge for ongoing utilization of the CellGate app,TrueCloud Connect™, storage of all access transactions/photos & access control data transmissions via cellular or internet.

Entría E4DC Downloads

Related Entría Products

Find the right solution for your property.

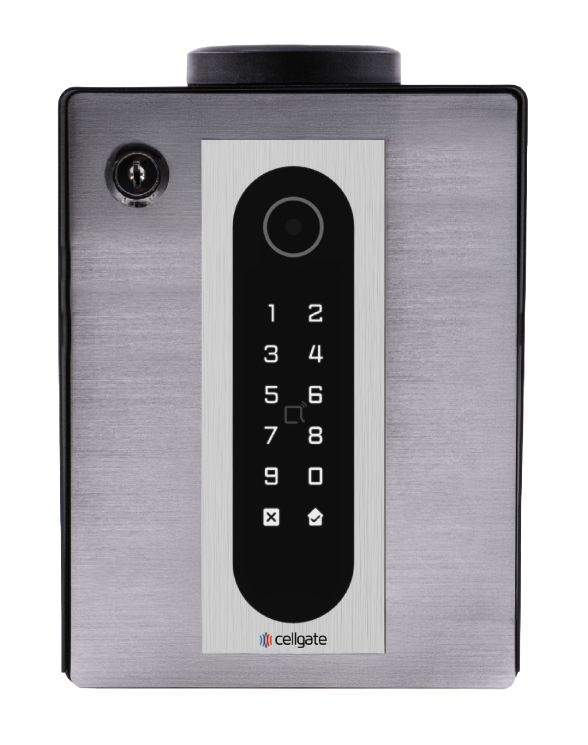

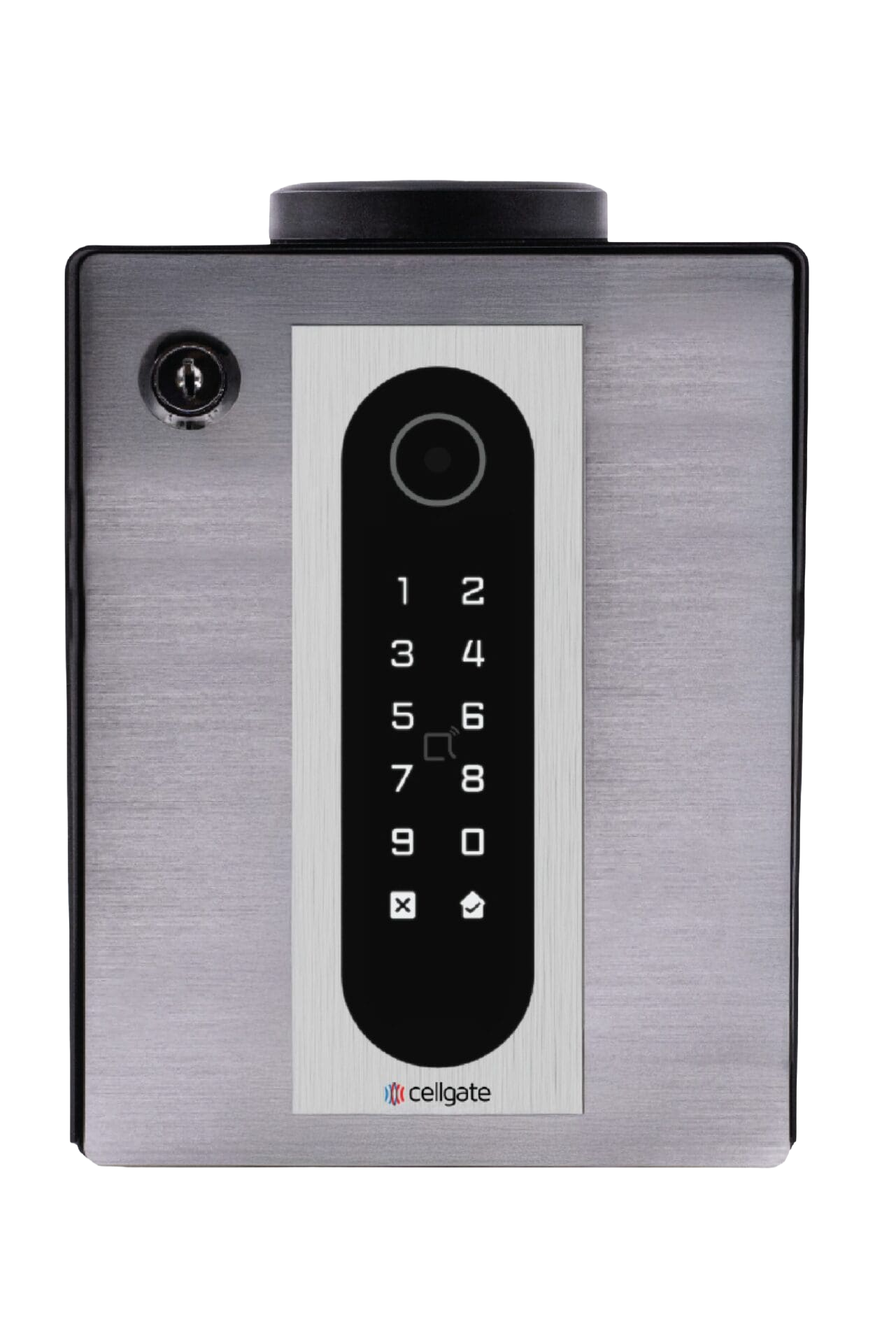

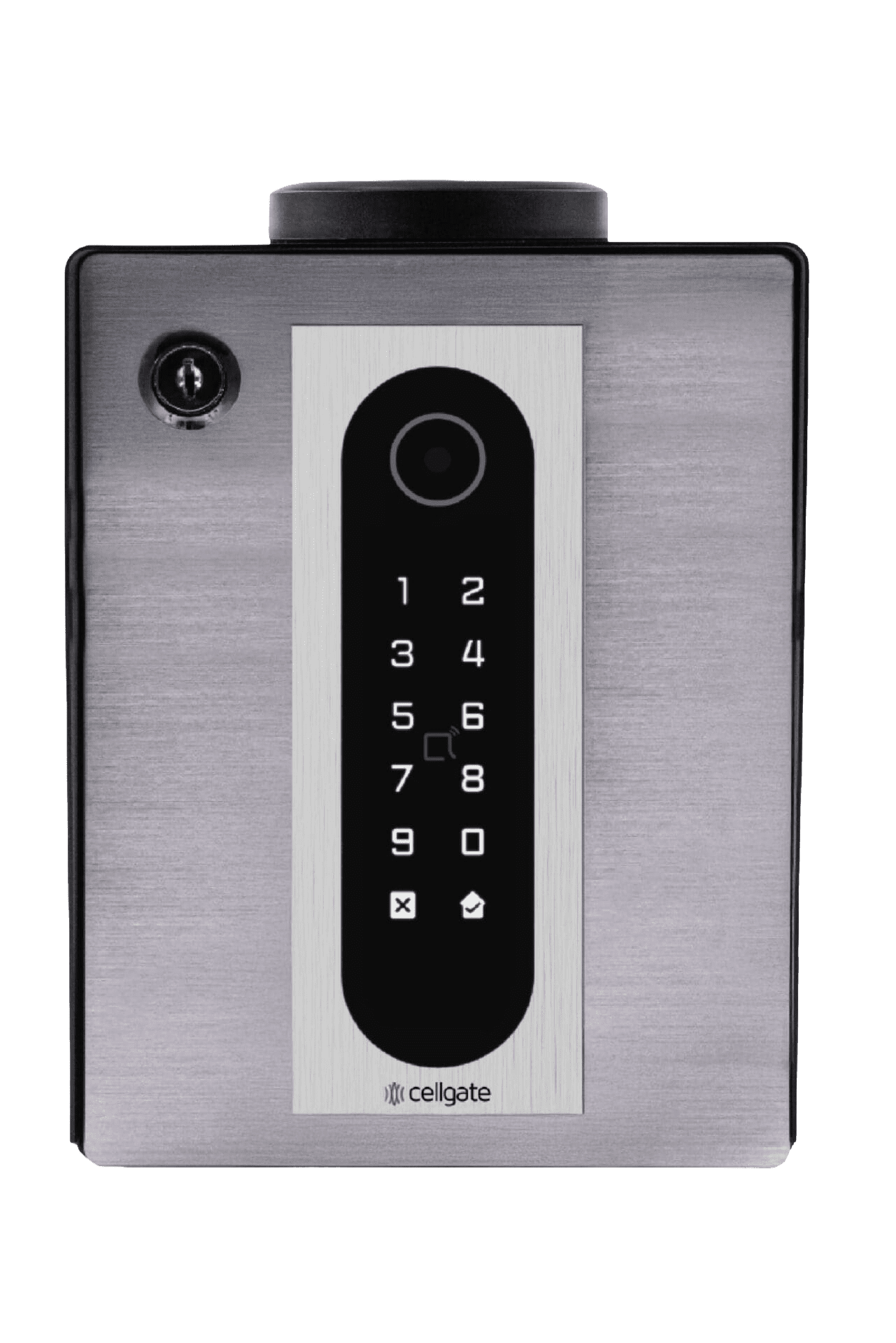

Single Door Controller
