OmniPoint is a wireless multi-point door access control system that utilizes a hub and spoke methodology.

In order to provide wireless door access control, an OmniPoint Gateway acts as the communications hub that transmits data to CellGate’s TrueCloud Connect via Ethernet, or on AT&T or Verizon’s cellular LTE networks.  The Gateway also communicates locally with up to 100 entry points via LoRa technology.

No long distance data wires are required – the only wiring is for power, and local wires to the card reader and lock.

Contact CellGate »
OmniPoint Brochure »

OmniPoint Door Access Control

OmniPoint is the cost-effective, reliable and easy-to-install wireless access control solution that gated communities, campuses and businesses have been waiting for.

Key Features

No Data Wires Needed, Cost Effective

Simpler installation & 100 entry points controlled by a single Gateway

Up to One Mile Range Via LoRa Technology

One Gateway covers most locations; multiple Gateways integrate seamlessly for larger properties

Works with any 26-bit Wiegand Device

Will work with most types of access devices

Line of Sight Not Required

OmniPoint can be installed almost anywhere

Gateway Works on Verizon, AT&T or Ethernet

Works on the largest LTE networks in America

Controlled Via TrueCloud Connect or Connecting Integration

Can be administrated via TrueCloud Connect or RealPage integration

OmniPoint System Architecture: Door Access Control

OmniPoint Door Architecture Diagram TrueCloud Connect

Product Features & Benefits



OmniPoint Gateway for Wireless Access Control

OmniPoint’s Gateway provides connectivity to TrueCloud Connect via cellular LTE or Internet; and connectivity to EPMs or OPSs via a LoRa network.

OmniPoint Gateway Box Dimensions: 8.5″ height, 8.5″ width, 3.5″ depth, not including antenna(s) or connectors.

Maximum LoRa range is achieved the higher the Gateway is installed.

An OmniPoint Gateway comes with a 5.8dBi fiberglass omni-directional LoRa antenna, lightning arrestor, mounting bracket and power supply.

Supports most properties that span up to one mile, and up to 100 entry points.

Antenna accessories are available.

-Additional 3dBi or 8dBi LoRa antennas
-Cellular LTE directional antennas

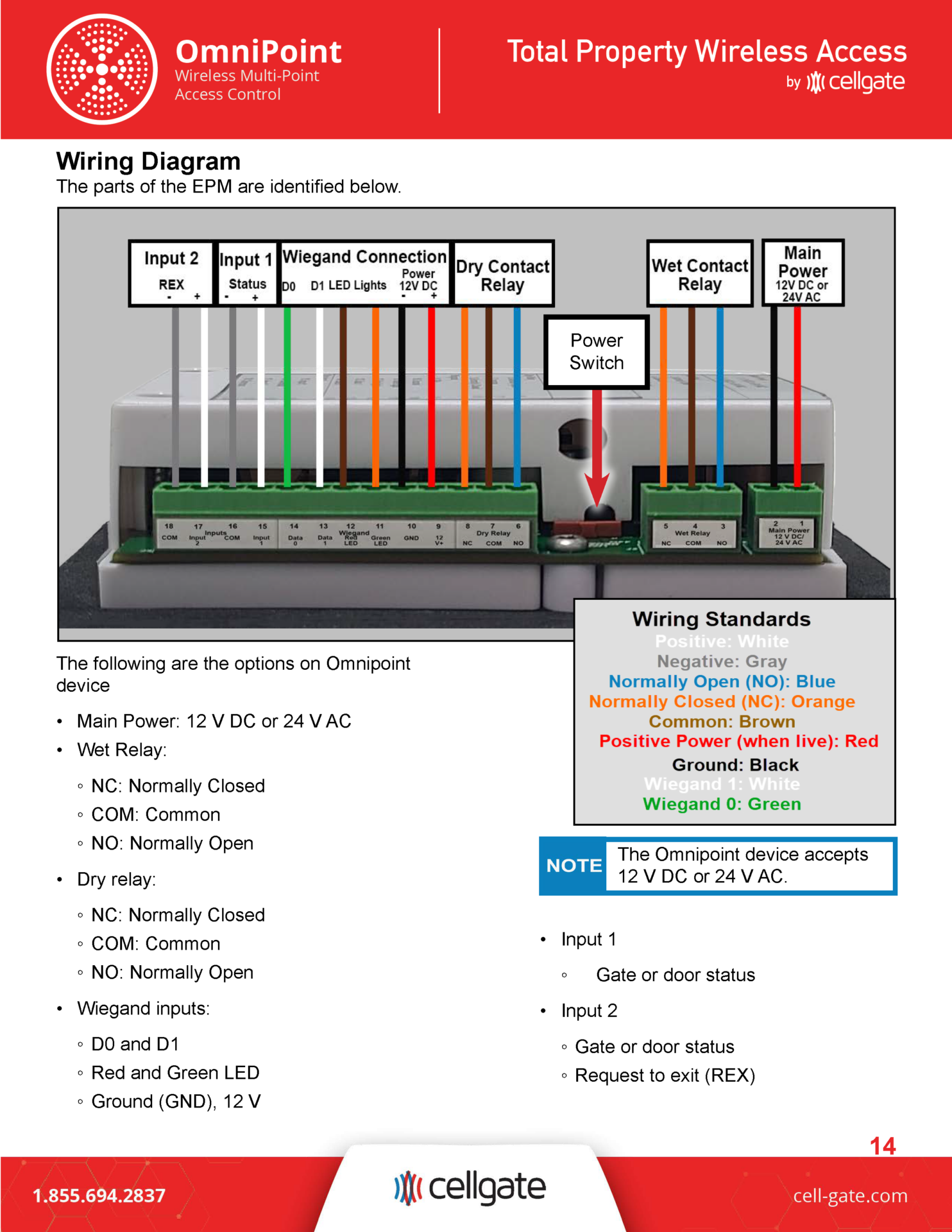

EPM V1 Models Available:

OP-EPM-DG (Internal Antenna)
OP-EPM-DG-EXT (External Antenna)

Each EPM (entry point module) comes with a choice of internal or external antenna, depending on LoRa signal strength at the individual entry point.

Each EPM is standard double gang size.

EPM Dimensions are: 4.5″ height, 4.5″ width, xx” depth.

EPMs work with any Wiegand 26-bit device.

Ideal for majority of gates, card readers, keypads or wireless remotes.

EPMs can store common restrictions at each entrance.

If connectivity to TrueCloud Connect is lost, credentials still work.

EPMs can be powered by 12vDC or 24vAC

Compatible with customer’s choice of electronic locks.

Fire Alarm Function

This function enables the fire alarm to trigger a desired designated action when activated, including opening some or all assigned doors and gates. It also closes such entries upon completion of the fire alarm event.



NEW! EPM V2 Models – Available April 2024

Each EPM (entry point module) V2 comes with a choice of internal or external antenna, depending on LoRa signal strength at the individual entry point.

EPM V2 with Internal Antenna:

OP-EPM-V2-500-DG (500mA version)
OP-EPM-V2-1000-DG (1,000mA version)

EPM V2 with External Antenna:

OP-EPM-V2-500-EXT (500mA version)
OP-EPM-V2-1000-EXT (1,000mA version)

EPM V2 Enhancements include:

RS485 connector for OSDP
Bluetooth that works with the CellGate Installer App to quickly download the database of credentials into the unit
Test-mode switch: to test signal strength at a location, set the switch to “test” and power cycle the device

Readily available mounting hardware. Each EPM is standard double gang size.

EPM Dimensions: 4.5″ height, 4.5″ width, xx” depth.

EPM V2s work with any Wiegand 26-bit device.

Ideal for majority of gates, card readers, keypads or wireless remotes.

EPM V2s can store common restrictions at each entrance.

If connectivity to TrueCloud Connect is lost, credentials still work.

EPM V2s can be powered by 12vDC or 24vAC

Compatible with customer’s choice of electronic locks.





The Multi-Door Controllers control multiple entry points.

Designed with 4 antennas and 4 EPMs (entry point modules), the MDC4 can control up to 4 doors.

MDC4 works with any Wiegand 26-bit device.

Readily available mounting hardware.



The Multi-Door Controllers control multiple entry points.

Designed with 4 antennas and 6 EPMs (entry point modules), the MDC6 can control up to 6 doors.

MDC6 works with any Wiegand 26-bit device.

Readily available mounting hardware.



OPSs (OmniPoint Sensors) are for monitoring status/conditions only, and require no power.

When the status/condition of a sensor changes, the OmniPoint system can send notifications about that change to whoever is designated.

1st type of OPS is equipped with a magnetic door position sensor.

Tells TrueCloud Connect if a door is open or closed.  Notifications can be sent to designated personnel when door position changes.

2nd type of OPS is a digital sensor that can monitor lock status, fluid levels, on/off status of equipment, etc.

Tells TrueCloud Connect if a door is locked or unlocked, if a fluid level has reached a dangerous point, and whether lights or a piece of equipment is turned on or off.  Notifications can be sent to designated personnel for any of these status/conditions changes.





Entire system can be managed via TrueCloud Connect, hosted by Microsoft Azure.

Simple, robust administration.  New users, access with time/date restrictions, alerts/notifications and access log time & date details can all be set up/reviewed via TrueCloud Connect.

Notifications can be sent to designated parties via text or email regarding access attempts at specific entry points or by certain users.

Better security.  Know instantly who utilized an entry point, and when.

Prop open notification: gate/door sensor notifies designated user(s) if gate/door has been left open longer than 3 minutes.

Better security.  Gates and doors cannot be left open inadvertently.

Multiple user tier levels available for varied user and administration management needs.

Allows the administrator to provide only the system functionality each designated user really needs.

Mass import of user and credential data.

Makes initial user setup simple.

Multiple locations can be managed via a single login.

Simple administration of multiple properties.

TrueCloud Connect has connecting integrations with Yardi and RealPage property management software that facilitates provisioning of all CellGate products without dual entry.

OmniPoint’s Gateway provides connectivity to TrueCloud Connect via cellular LTE or Internet; and connectivity to EPMs or OPSs via a LoRa network.

Works on Verizon or AT&T LTE cellular networks for wireless communication from the OmniPoint Gateway to TrueCloud Connect.

A hardwired internet option is also available for wireless communication from the OmniPoint Gateway to TrueCloud Connect.

Allows for utilization of existing internet infrastructure (if available), minimizes recurring costs.

Utilizes LoRa technology for data communication between the OmniPoint Gateway and locally installed EPMs (entry point modules) and OPS’ (OmniPoint sensors).

LoRa is noted for its long range transmission distance, strong signal penetration and high sensitivity.  LoRa transmissions can penetrate glass, metal and concrete.



The CellGate app can be used by property management to create access codes, send momentary “open door” or “hold door open” commands.

Ultimate convenience; means certain system functions can be controlled from anywhere.

The CellGate app works on both iOS and Android smart phones.

Works with majority of smart phones.



The CG Installer app is for dealers/installers only; the app works on both iOS and Android smart phones.

Works with majority of smart phones.

CG Installer app allows dealers/installers to activate EPMs while in the field.

Makes OmniPoint installations quick and simple, especially compared to wired systems.

Property Management Features
  • Administration of OmniPoint — and all other CellGate branded products — occurs via TrueCloud Connect
  • Dedicated Gold Key Customer Service team for OmniPoint onboarding assistance
  • Multiple user tier levels for varied user and administration management needs
  • Programmatic user enrollment process and import tools
  • Multiple locations can be managed via a single TrueCloud Connect login
  • Customizable notifications and alerts of door/gate status
  • Temporary access can be set up with time/date restrictions
  • Stored activity logs of all entry point access attempts
  • Designated user(s) can create access codes, send momentary “open door” or “hold door open commands from CellGate app
Dealer Features
  • Pre-configured system
  • End-to-end support
  • Cellular carrier and signal strength verification
  • Enables installers to test all features
  • Easy activation of EPMs via CG Installer App
  • Multiple locations/Cellgate devices can be managed via a single login to TrueCloud Connect™
MONTHLY SERVICE PLAN

CONFIRM CONNECTION TYPE BASED ON BEST CARRIER COVERAGE.

OmniPoint can be connected via Verizon, AT&T or via a hardwired Ethernet connection.





OMNIPOINT HAS ONE MONTHLY SERVICE PLAN

Allows for ongoing utilization of the app, TrueCloud™ web portal, storage of all access transactions, and daily access control data transmissions via cellular or internet.

Call us at 855.694.2837 x103, or call your local dealer for service pricing details.



OmniPoint Accessories

  • Antennas
  • Lightning Arrestors
  • EPM: internal antenna
  • EPM: external antenna
  • OPS with magnetic door position option
  • OPS with digital input version available for lock status, fluid levels, on/off status, etc.
